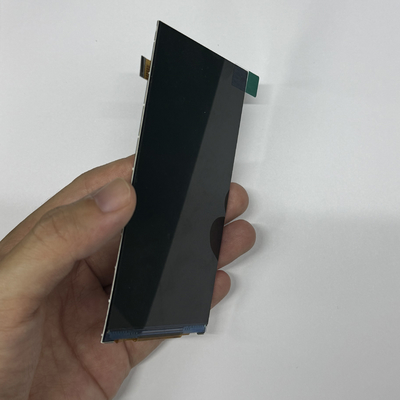

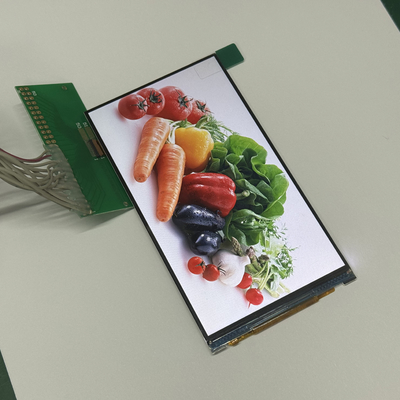

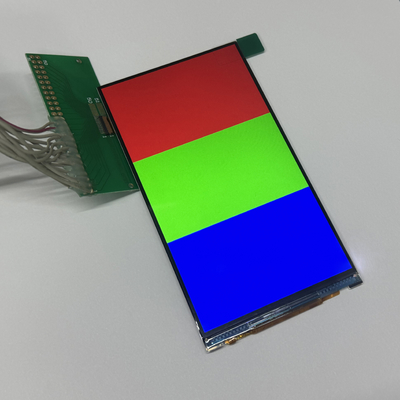

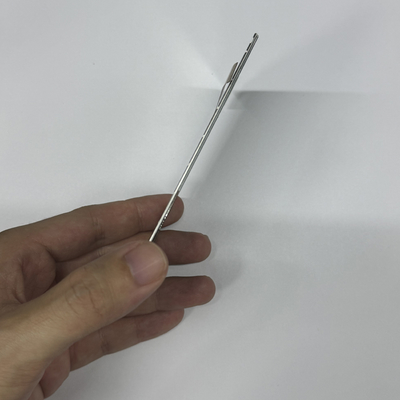

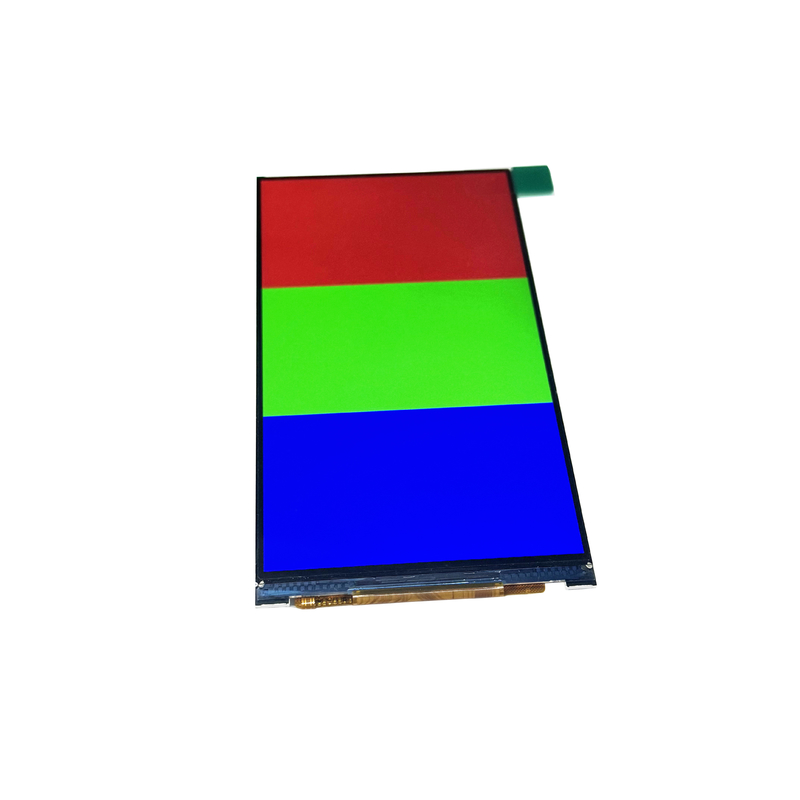

5 Inch TFT LCD Display Module 720x1280 MIPI Interface for Handheld Devices

Nome da marca:	GENYU
MOQ:	100
preço:	$10-15

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Place of Origin:

Guangdong, China

Display Size:

5 INCH

Resolution:

720*1280

Operating Temperature:

-20~70℃

Backlight Type:

LED

Communication Interface:

MIPI interface/25 pin

Driver IC:

HX8394F

LCD Type:

TFT Transmissive

Number of Dots:

720x (RGB) x 1280

Pixel Arrangement:

RGB Vertical Stripe

Active Area:

62.1(H) x 110.4(V) mm

Viewing Direction:

ALL

Module Size:

119.3(H) × 65.3 (H) *1.71 mm

Mounting Type:

PCB

Screen Size:

System Interface:

MIPI interface/25 pin

Destacar:

5 inch TFT LCD display module

720x1280 MIPI interface display

handheld device LCD panel

Descrição do produto

Factory Direct 5 Inch TFT LCD Display Modules 720*1280 Resolution with MIPI Interface for Handheld Devices

Product Specifications

Attribute	Value
Type	TFT
Display Size	5 INCH
Supplier Type	OEM/ODM
Backlight Type	LED
Resolution	720*1280
Operating Temperature	-20~70℃
Display Type	TFT
Mounting Type	PCB
Screen Size	5"
Communication interface	MIPI interface/25 pin
Driver IC	HX8394F

Product Details

LCD Type: TFT Transmissive
Number of Dots: 720x (RGB) x 1280
Pixel Arrangement: RGB Vertical Stripe
Active Area: 62.1(H) x 110.4(V)
Viewing Direction: ALL
Driver IC: HX8394F
Module Size: 119.3(H) × 65.3 (H) *1.71
Back Light: White LED
System interface: MIPI interface/25 pin

About Genyu Optical

Established in 2003, Shen Zhen Genyu Optical Co., Ltd specializes in R&D, production and sales of LCD displays, OLED and TFT LCD modules. We offer professional customized LCD screens (including TN, HTN, STN, FSTN, VA (BTN)), COG and COB LCD modules.

Our 30,000 square meter facility employs 1,000 staff including 36 technicians, 16 developers and 60 QC personnel. With modern automation equipment, advanced technology and a strong R&D team, we maintain high production standards.

We design, develop and produce customized LCD, LCM, B/L, FPC and other products according to customer requirements. Current annual production capacity reaches 100 million LCD screens, 30 million LCMS and 40 million B/L.

Quality Assurance

Our 6,000 square meter dust-free workshop maintains a cleanliness level of 100k. The facility features closed transfer windows and air showers to eliminate contaminants, ensuring product quality.

Our Product Range

1. Custom Segment LCD Display

We've produced tens of thousands of segment LCDs with TN, STN, HTN, FSTN, and VA/BTN technologies. Our team can recommend existing solutions or design custom LCDs to your specifications.

2. Dot Matrix Graphic LCD Display

Available in various configurations including 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160 up to 320x240 dot matrix displays.

3. AMOLED Display

Mini size OLED displays ranging from 0.42" to 2.4" for various applications.

4. TFT LCD Display

HD full color TFT LCD displays from 0.91" to 10.1" with standard sizes and standing stock available.

Applications: Wearable Devices, Medical Equipment, Financial Systems, Industrial Applications, New Energy, Communication Devices, Instrumentation

Packaging & Shipping

Plastic Containers: Each COG LCD product comes in custom protective containers
Cartons: 398 x 331 x 430 mm (approx. 17 KG)

Shipping Options:
- DHL/UPS/FedEx/TNT: 2-5 working days
- EMS: 7-10 working days
- CPAM/HKPAM: 10-30 working days

Contact Erica Tan for inquiries:
Tel: 0755-27856531
Mobile: +86-15919421997
Wechat: 15919421997
Skype: live:gyerica_1
Website: www.genyulcm.com
Email: Erica@szgenyu.com
