2.4 inch TFT LCD Display with 240x320 Resolution and SPI Interface for Home Appliances

Nome da marca:	Genyu
MOQ:	1000
preço:	$2.05-2.19

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Cantão, China

Tamanho de exibição:

2,4 polegadas

Resolução:

240*320 pontos

Modo de exibição:

Transimissivo, TN/IPS

Driver IC:

ST7789/NV3030/IIL9341, etc.

Ângulo de visão:

12/06 ou grátis

Luz de fundo:

Diodo emissor de luz de 4 Chip White

Interface:

SPI, MCU, RGB, etc.

Conector de FPC:

Plug-in ou Solda

Temperatura operacional:

-20~+70℃

Tamanho do módulo:

42,72*60,26*2,35mm

Área ativa do painel:

36.72*48.96mm

Luminância:

300 CD/m2

Taxa de contraste:

250

Controle IC:

ST7789V

Tipo Fpc:

Tipo de soldagem de 18 pinos

Destacar:

2.4 inch TFT LCD Display

240x320 Resolution TFT LCD Panel

SPI Interface TFT LCD Screen

Descrição do produto

2.4 Inch TFT LCD Display Modules

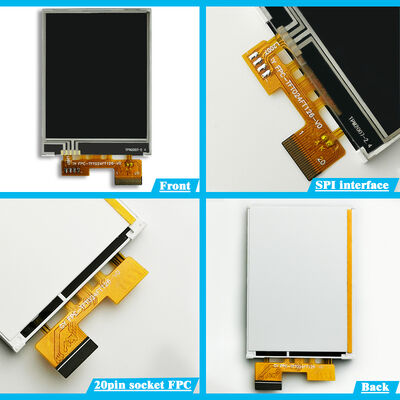

GY-TFT024FT126 - Resistive Touch Screen 2.4 inch TFT

Module Size: 42.72×60.26×2.35mm
Panel Active Area: 36.72×48.96mm
12:00 viewing angle panel
ST7789V Control IC
Resolution: 240×320
4 SPI Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
20 pin Pull-in type connector FPC

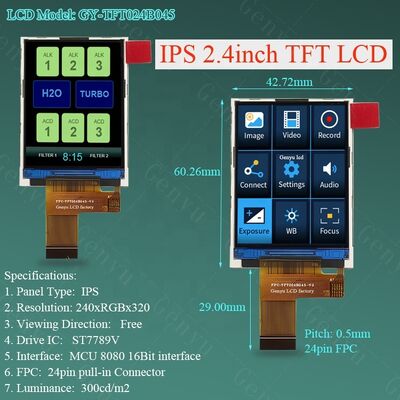

GY-TFT024B045 - IPS TFT LCD Display

Module Size: 42.72×60.26×2.20mm
Panel Active Area: 36.72×48.96mm
IPS full viewing angle panel
ST7789V Control IC
Resolution: 240×320
MCU 8080 16bit Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
24 pin Pull-in type connector FPC

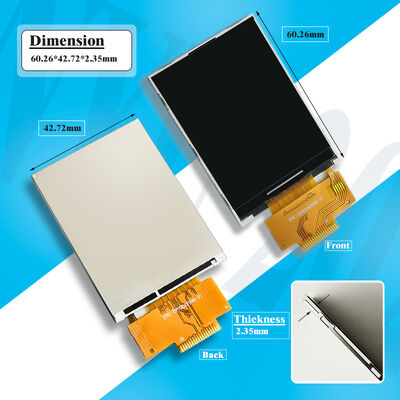

GY-TFT024F099 - SPI Interface TFT LCD Display

Module Size: 42.72×60.26×2.35mm
Panel Active Area: 36.72×48.96mm
12:00 viewing angle panel
ST7789V Control IC
Resolution: 240×320
SPI Interface
Luminance: 300 cd/m²
Contrast Ratio: 250
4 white LEDs backlight
Operating Temperature: -20°C to +70°C
18 pin welding Type FPC

Complete TFT LCD Display Size Range

TFT LCD Size	View Angle Options	Interface Options	FPC Options
0.96", 1.0", 1.06", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7.0"	IPS Full view angle, 12:00, 6:00	RGB, SPI, I2C, 8080, 6800, serial port, parallel port, Support customization	Pull-in Connector, Solder Type, Support customization

Click on the pictures below to explore our complete TFT display portfolio:

About Shen Zhen Genyu Optical Co., Ltd.

Genyu offers tens of thousands of LCD options for your reference. Please share your requirements with Erica Tan, who will recommend similar LCDs according to your specifications, or we can customize LCDs to meet your exact requirements.

For more datasheets and samples, please click here.

Additional Display Technologies

PMOLED Display

Genyu offers mini size OLED displays in sizes: 0.42", 0.49", 0.66", 0.78", 0.87", 0.91", 0.96", 1.3", 1.54", 2.08", 2.3", 2.4" with SSD1315 and SSD1306 drive ICs supporting I2C and SPI interfaces.

Custom Segment LCD Display

Genyu has produced tens of thousands of segment LCDs including TN, STN, HTN, FSTN, and VA/BTN black LCD displays. We can recommend similar LCDs or design custom LCDs according to your requirements.

128x64 Dot Matrix Graphic LCD Display

Genyu offers various dot matrix LCD displays including: 96x16, 96x24, 122x32, 132x36, 132x96, 128x32, 128x64, 128x96, 160x32, 160x80, 192x64, 240x80, 128x128, 160x160, and up to 320x240 resolutions.

TFT LCD Module Portfolio

Genyu provides HD full color TFT LCD displays in sizes: 0.91", 1.0", 1.28", 1.3", 1.44", 1.54", 1.77", 2.0", 2.2", 2.4", 2.8", 2.95", 3.13", 3.2", 3.5", 4.3", 7", and 10.1" with standard sizes, standing stock, and samples available.
