0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 12832 Inch 12832 OLED 128*32

Nome da marca:	Genyu
MOQ:	100 peças
preço:	$1.19/pieces 100-999 pieces

Informações pormenorizadas

Descrição do produto

Informações pormenorizadas

Lugar de origem:

Guangdong, China

Tipo:

PMOLED

Tamanho da exibição:

0,91 OLED

Modo Displya:

OLED

Tamanho:

exposição de 0,91 polegadas OLED

Matriz DOT:

OLED 128x32

Ângulo de visualização amplo:

160 °

Drive IC:

SSD1306 OLED

Tamanho do módulo:

30,00*11,50*3,70 mm

Área ativa:

22.384*5.584 mm

Cor:

Branco ou azul

Nome do produto:

15 pino 0,91 "OLED

Interface:

Spi ou i2c

Destacar:

0.91 Inch OLED Panel

I2C OLED Screen

0.91 Inch OLED Display

Descrição do produto

15 Pin 0.91" OLED 128x32 White Blue OLED Panel 0.91 Inch 128*32 SSD1306 SPI I2C Screen Display 0.91 OLED Display

Product Description

Products: Organic light emitting diode (OLED)

Regular size, standing stock.

Product number : GY12832-03 white Words

Product number : GY12832-07 Blue Words

1. Features

(1) Display Type : Organic light emitting diode (OLED)

(2) Display Size : 0.91 inch oled

(3) Dot Matrix : 128x32 Dots
(4) Drive IC : SSD1306

(5) Viewing Angle : 160°

(6) Color : White or Blue

(8) Operating Tempeture : -20~70 °C

(9) Storage Tempeture : -30~80 °C

Structure	LCD + IC + FPC
Module Size	30.0011.503.70 mm
VIEwing Area	24.384*7.584 mm
Dot Size	0.159*0.159 mm
Dot Pitch	0.175*0.175 mm
Connection	COG + FPC

Life Time (120 cd/m 2 ) 10000 - hour
Life Time (80 cd/m 2 ) 30000 - hour
Life Time (60 cd/m 2 ) 50000 - hour

Detailed Images

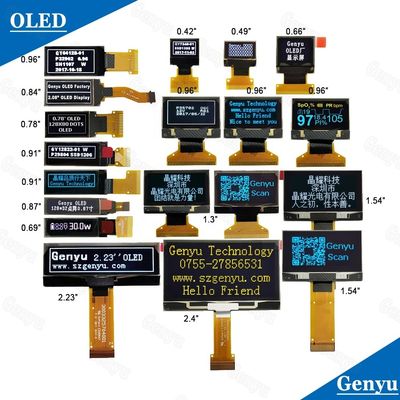

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 0

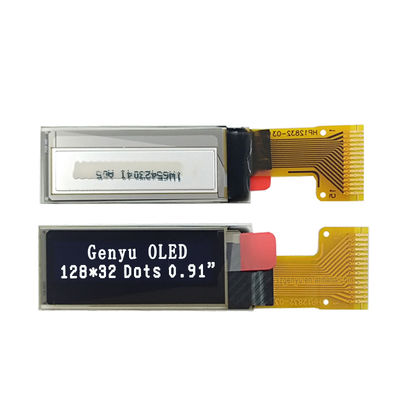

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 1

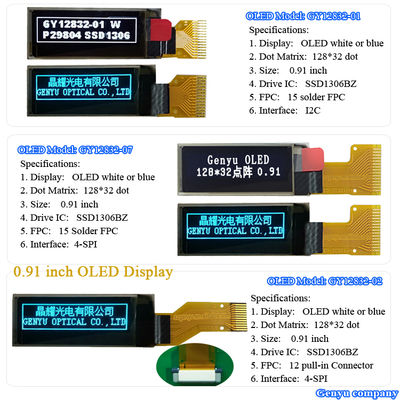

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 2

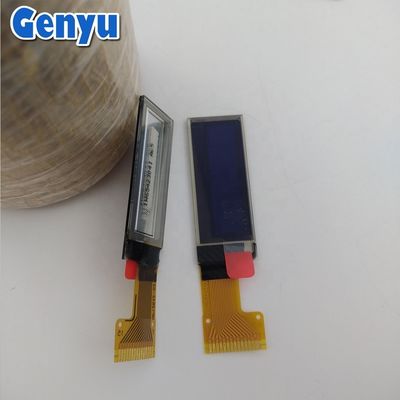

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 3

Packaging & Shipping

Payment
Please contact us before you make payment.
Payment terms: T/T, Western Union. Paypal....

Delivery
Items will be shipped within 3 working days on payment received.

By DHL/UPS/FedEx/TNT: about 4-9 working days.
By EMS: about 10-14 working days.
By CPAM/HKPAM: about 15-25 working days.

Packaging
1. Anti-static bag or Bubble bag; (For samples)
2. Plastic pallet;
3. Carton box.

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 4

Company Information

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 5

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 6

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 7

Our Services

0.91 Inch 128x32 White Blue OLED Panel 15 Pin 0.91 OLED Display SSD1306 SPI I2C OLED Screen 128*32 Inch 128*32 OLED 128*32 8

1). Datasheets

We will provide detailed datasheets of screen/module/driver IC and application circuit to you.

2). Source Code
We can provide whole source code or initial code to you.

3). Technical Support
We have experienced engineers and they will provide you comprehensive technical service.

4). Customizable
We provide customizable service. For example custom FPC, custom PCB, custom module and so on.

5). Solution
If you need a solution with some special function, tell us,we can meet your requirement.
